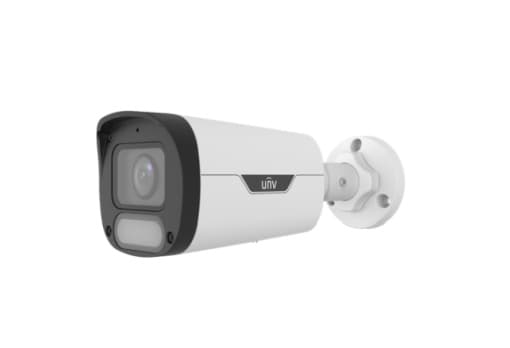

Uniview IPC2314LE-ADF40KM-WP 4MP ColorHunter Bullet HD CC Camera
Key Features
4MP (2688 × 1520) Resolution
4.0mm Fixed Lens
30 Meter Night Vision IR Distance
512GB Storage Capacity
Built-in Microphone
1 Year Brand Warranty
Brand: Uniview
Status: In-Stock
SKU: IPC2314LE-ADF40KM-WP
Warranty Type: 1 Year Brand Warranty
1
Specification
Basic Info | |
|---|---|
| Brand | Uniview |
| Series | Dolphin |
| Model | IPC2314LE-ADF40KM-WP |
Design | |
|---|---|
| Product Type | IP Camera |
| Form Factor | Bullet |
| Camera Type | Fixed |
| Usage | Outdoor |
| Casing | Metal |
| Body Color | Black and White |
| Working Distance | 30 Meter |
Camera | |
|---|---|
| Image Sensor | 1/1.8" CMOS Sensor |
| Mega Pixel | 4MP |
| Camera Resolution | 2688 (H) × 1520 (V) |
| Shutter Time | Auto/Manual, 1 ~ 1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Night Vision | Yes |
| Night Vision Mode | Color |
| Angle Adjustment | Pan: 0°~ 360°, Tilt: 0°~ 90°, Rotate: 0°~ 360° |
Lens | |
|---|---|
| Lens Type | Fixed-focal |
| Focal Length | 4.0mm |
| Field of View | (H) 89.4° (V) 48.2° (D) 94.7° |
Illuminator | |
|---|---|
| IR Range | Up to 30m |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Lifetime | 60,000 Hours |
DORI | |
|---|---|
| DORI Distance | D: 62.1 m, O: 24.8 m, R: 12.4 m, I: 6.2 m |
Image | |
|---|---|
| Wide Dynamic Range (WDR) | DWDR |
| SNR | 52dB |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Network | |
|---|---|
| Interface | Lan |
| Ethernet | 1 * RJ45 10M/100M Base-TX Ethernet |
| Protocol | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK |
| Client | EZStation,EZView,EZLive |
Storage | |
|---|---|
| Storage Type | ANR, NAS(NFS) |
| Edge Storage | Micro SD, up to 512GB |
Video | |
|---|---|
| Video Compression | Ultra 265, H.265, H.264 |
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| ROI | Up to 8 areas |
| Video Stream | Dual streams |
| OSD | Up to 4 OSDs |
Audio | |
|---|---|
| Built-in Mic | Yes |
| Audio Compression | G.711 |
Power | |
|---|---|
| Power Supply | DC12V |
| Power Consumption | Max 2.8W |
Security | |
|---|---|
| Ingress Protection | IP67 |
| Surge Protection | 4KV |
Certification | |
|---|---|
| CE | EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035 |
| Safety | UL 62368-1, CAN/CSA C22.2 No. 62368-1 |
Additional Info | |
|---|---|
| Made in | China |
Physical Description | |
|---|---|
| Dimensions | 206 × 73 × 73mm |
| Weight | 0.48kg |
Warranty | |
|---|---|
| Warranty | 1 Year |
| Warranty Details | 1 Year Brand Warranty |
| Warranty Policy | No Warranty for Physical & Burn Damage |
Description
Brand: Uniview
Series: Dolphin
Model: IPC2314LE-ADF40KM-WP
Product Type: IP Camera
Form Factor: Bullet
Camera Type: Fixed
Usage: Outdoor
Casing: Metal
Body Color: Black and White
Working Distance: 30 Meter
Image Sensor: 1/1.8" CMOS Sensor
Mega Pixel: 4MP
Camera Resolution: 2688 (H) × 1520 (V)
Shutter Time: Auto/Manual, 1 ~ 1/100000s
Day & Night: IR-cut filter with auto switch (ICR)
Night Vision: Yes
Night Vision Mode: Color
Angle Adjustment: Pan: 0°~ 360°, Tilt: 0°~ 90°, Rotate: 0°~ 360°
Lens Type: Fixed-focal
Focal Length: 4.0mm
Field of View: (H) 89.4° (V) 48.2° (D) 94.7°
IR Range: Up to 30m
Wavelength: 850nm
IR On/Off Control : Auto/Manual
Lifetime: 60,000 Hours
DORI Distance: D: 62.1 m, O: 24.8 m, R: 12.4 m, I: 6.2 m
SNR: 52dB
White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Interface: Lan
Ethernet: 1 * RJ45 10M/100M Base-TX Ethernet
Protocol:
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP,
DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
Client: EZStation,EZView,EZLive
Storage Type: ANR, NAS(NFS)
Edge Storage: Micro SD, up to 512GB
Video Compression : Ultra 265, H.265, H.264
Frame Rate:
Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps;
MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576),
Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
ROI: Up to 8 areas
Video Stream: Dual streams
OSD: Up to 4 OSDs
Built-in Mic: Yes
Audio Compression: G.711
Power Supply: DC12V
Power Consumption: Max 2.8W
Ingress Protection : IP67
Surge Protection: 4KV
CE: : EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035
Safety: UL 62368-1, CAN/CSA C22.2 No. 62368-1
Dimensions: 206 × 73 × 73mm
Weight (gm): 0.48kg
Warranty: 1 Year
Made in: China
